MiniPrinter XL

The MiniPrinter XL is a Cartesian printer that shares the design of the MiniPrinter L but offers a wider build volume for larger projects.

Learn more about this machine on the MiniPrinter XL product page.

At a Glance

Property	Value
Type	Cartesian
Build volume	2500 × 1200 × 1200 mm (W × D × H)
Default layer height	10 mm
Gcode format	.mpp
Print head option	1K / 2K

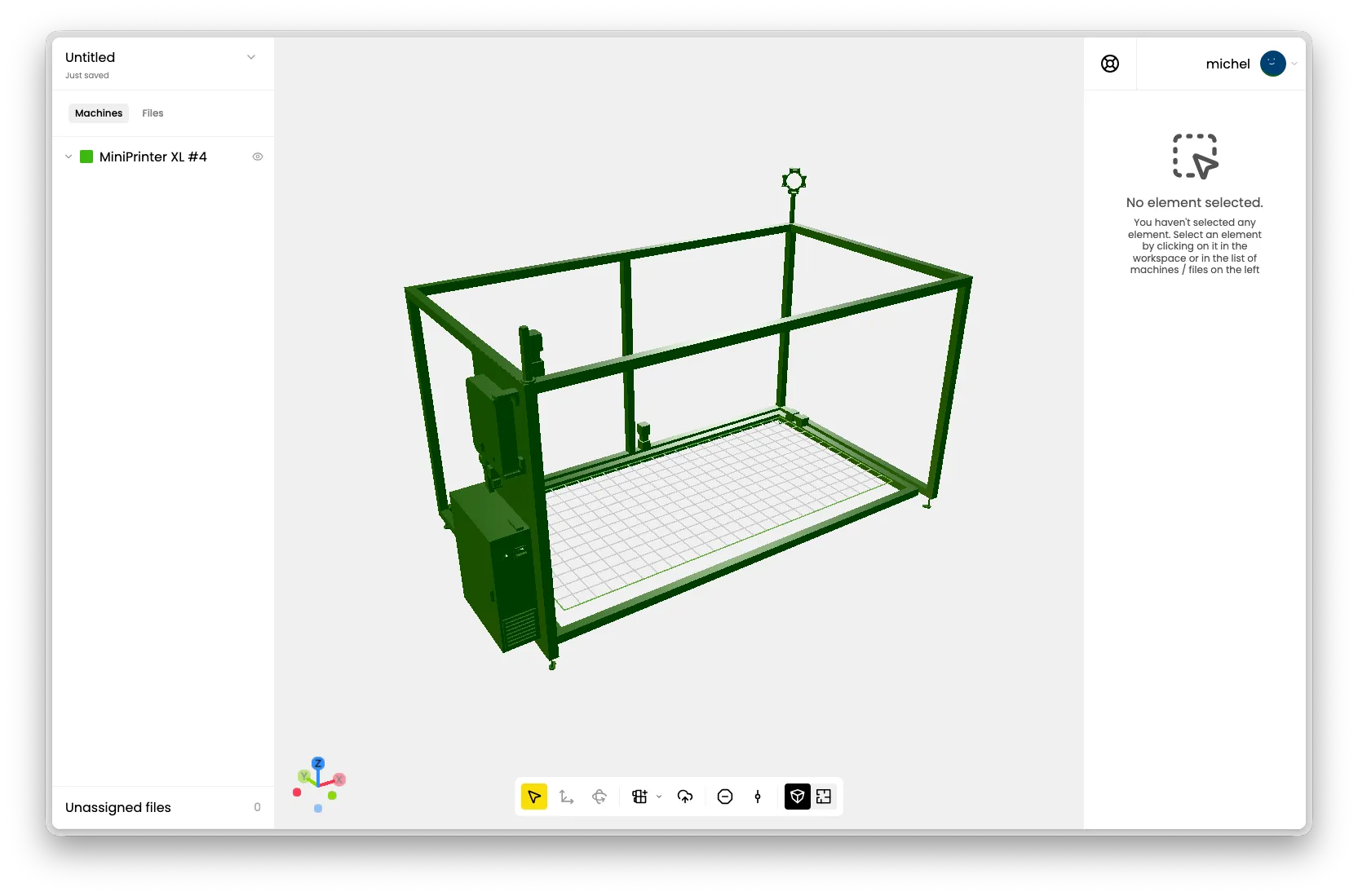

Machine Area

In the right bar, the Machine area panel lets you configure how the build volume is displayed:

• Grid: Cartesian (a square floor grid) or None.
• Area: display the Full printable area or None.
• Zone: switch between the Printable and Reachable envelopes.

Note

The MiniPrinter XL is twice as wide as the MiniPrinter L (2500 mm instead of 1200 mm), while keeping the same depth and height.

Print Head Option

In the Machine settings panel, you can choose the Print head:

• 1K (default)
• 2K

Caution

The 2K print head is larger than the 1K head. When it is selected, the usable printing area is reduced by about 155 mm along one side to account for the head’s size. Keep this in mind when positioning files close to the edge of the build volume.

Print Settings

The MiniPrinter XL uses a default layer height of 10 mm. All standard print settings are available.
